Wallbox 11kW 16A Air
Wallbox 11kW 16A Air
Regular price
₦1,152,400.00 NGN
Regular price
Sale price
₦1,152,400.00 NGN
Taxes included.
Wallbox 11kW 16A Air
The Loxone Wallbox enables dynamic charging from 1.38kW to 11kW for electric vehicles. The Air interface allows all the freedom for efficient energy management.
Features:
- Charge for free: use PV surplus efficiently
- Electricity exchange included: charge cheaply, even without a PV system. Ideal for variable electricity tariffs
- Easy operation with the Touch Pure Flex or the Loxone app
- Fleet-compatible: Protection of the line and the building thanks to optimal power distribution
- User identification and billing via NFC
- Optional expansion with touch devices, meters
- Up to 5 customizable charging modes
- Easy integration via Air
- OCPP capable
Technical details:
Max. charging power:
11kW (3 phase 16A)
3.7kW (1 phase 16A)
configurable from 1.38kW to 3.7/11kW

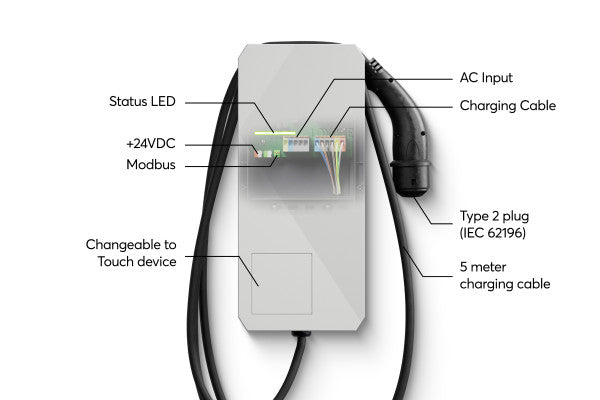

Charging cable with plug:
Type 2 plug (IEC 62196)
5 meter cable, 5x2.5mm² + 1x0.5mm²
Modbus RTU for connecting Energy meters:
max. 1 device
max. 3m wire length
adjustable baud rate & parity
data types: 16 & 32 bit
min. polling cycle: 5s
Ingress protection:
IP44 (IEC 60529)
IK08 (IEC 62262)
Product dimensions:
430x190x130mm / 16.93x7.48x5.12" (HxWxD)
