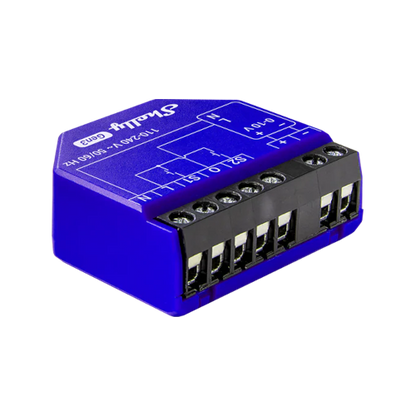

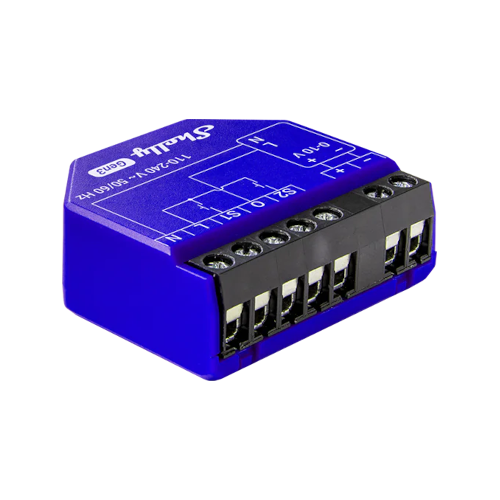

Device image

Opens image in full screen

Device identification

• Device name: Shelly Dimmer 0/1-10V PM Gen3

• Device model: S3DM-0010WW

• Device SSID: Shelly0110DimG3-XXXXXXXXXXXX

• BLE Model ID: 0x1072

Short description

Shelly Dimmer 0/1-10V PM Gen3 (the Device) is a smart dimming controller which allows remote control dimming drivers through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device is a current sourcing controller and provides support for 0-10V and 1-10V types of drivers.

Main features

• Bluetooth: The Device complies the Bluetooth standard and can connect with other Bluetooth devices to exchange data in short range.

• BLE Gateway: Facilitates communication between BLE and Wi-Fi-enabled devices.

• Wi-Fi: The Device can connect to a wireless network.

• Wi-Fi Range extender: Retransmits the Wi-Fi signal and extends its reach.

• Scripting: Allows creating automation scenarios through scripts.

• Basic Schedules: Supports weekly schedules and routines, including setting of brightness, transition duration, and flip value of the dimming signal.

• Аdvanced Schedules: Supports detailed schedules and routines throughout the year with a broad range of time adjustments from seconds to months, including setting of brightness, transition duration, and flip value of the dimming signal.

• Shelly Plus Add-On compatible: The Device supports connection with the sensor interface to the Shelly Plus devices.

• Auto on/off timers: Enables auto on/off timer setting.

• Local actions: Allows creating automation scenarios within the local Wi-Fi network, including setting of brightness, transition duration, and flip value of the dimming signal.

• Webhooks: Supports automation through lightweight, event-driven communication with other devices.

• Compatibility: Highly compatible with 3rd Party home automation systems.

• No need for hub: Ready for use locally or remotely via Shelly Smart Control or 3rd Party systems.

• Activity log: Stores detailed history of events.

• KVS (Key-value storage): KVS service provides a basic persistent storage of key-value pairs.

• Customizable thresholds and offsets for temperature, humidity and light when/if used with Plus Add-on

• Safety: Оver current/voltage/power protections

• Power measurement: Precise monitoring of energy consumption. Information about voltage (V), current (A) and consumption (W) is displayed.

• Diverse driver integration: Supports 0-10V and 1-10V types of drivers (lights, motors, valves, etc.).

• Night Mode: Enables to set a specific brightness of input lights during nighttime.

  • If night mode brightness < min_brightness_on_toggle, then min_brightness_on_toggle is applied

• Switch/Button input mode: Allows flexible input control through switches and/or buttons

  • One button dimming control

  • Dual button dimming control

• Transition duration: Controls the time for dimming from 0 to 100 % on toggle On and from 100 to 0% on toggle Off.

• Minimum brightness on toggle On: Brightness level (in percent) applied when there is a toggle On and current brightness is lower than 'Min brightness on toggle'. Default is 3%. Not applied when explicit (custom) transition is defined in Schedules and Actions.

• Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control on the output.

• Button fade rate: Controls how quickly the output brightness changes while holding the button(s). Default is 3x.

• Button presets: State to be applied on double-push (double-click) event. Default value is 100%

• Virtual components: A special set of components that do not exist in the device initially and are created dynamically by the user.

Main applications

• Residential

• MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)…

• Light commercial (small office buildings, small retail/restaurant/gas station, etc.)…

• Government/municipal

• University/college

Use cases

• Control brightness of dimmable lights within the 0-10 V range to set the perfect brightness.

• Create smart schedules to have lights automatically adjust their brightness throughout the day.

• Retrofit your existing lighting system with the Dimmer 0/1-10V PM Gen3 and continue using your current switches.

• Sync your lights with sunrise and sunset times easily using smart schedules.

• Activate a night mode for reduced brightness during nighttime hours.

• Integrate the Dimmer 0/1-10V PM Gen3 with third-party systems like Home Assistant, Google Home, Alexa, and SmartThings for expanded control options.

• Utilize the device to dim lights up or down with a single or double button press.

• Monitor and measure power usage of connected lights for energy management.

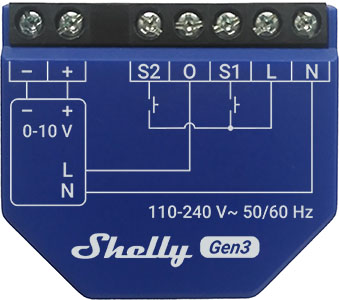

Simplified internal schematics
