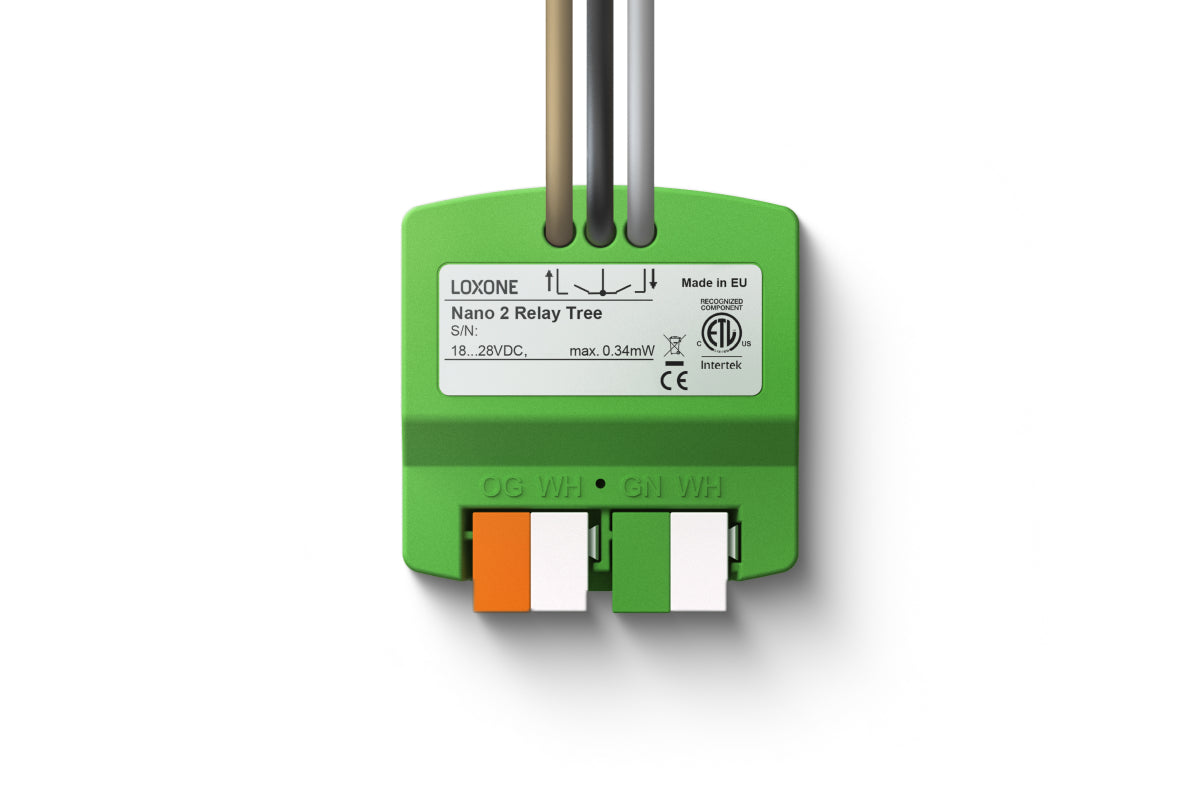

Nano 2 Relay Tree


The Loxone Nano 2 Relay Tree is a compact module with 2 relay outputs that are suitable for shading devices or universal use.

Features:

  • Includes current flow detection
  • Fully automatic end position detection
  • Suitable for shading, lighting, fans and much more

Technical details:

Supply voltage:

18 … 28 VDC

Outputs:

2 digital outputs (Relays), dry contact, shared hot
max. 250VAC 10A at cosᵠ=1 (IEC)
or
max. 30VDC 10A
total load max. 12A

Product dimensions:

39.45x38.95x20.20mm / 1.55x1.53x0.80” (LxWxH)
