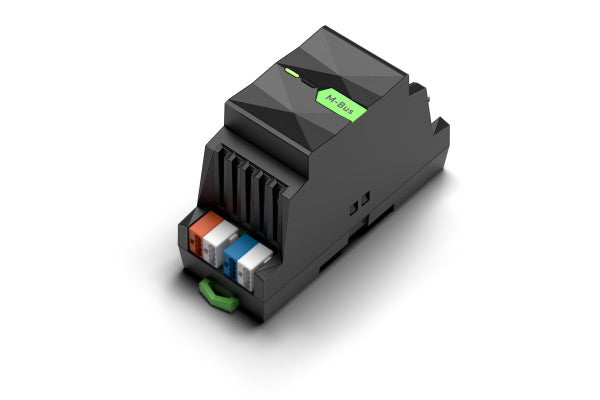

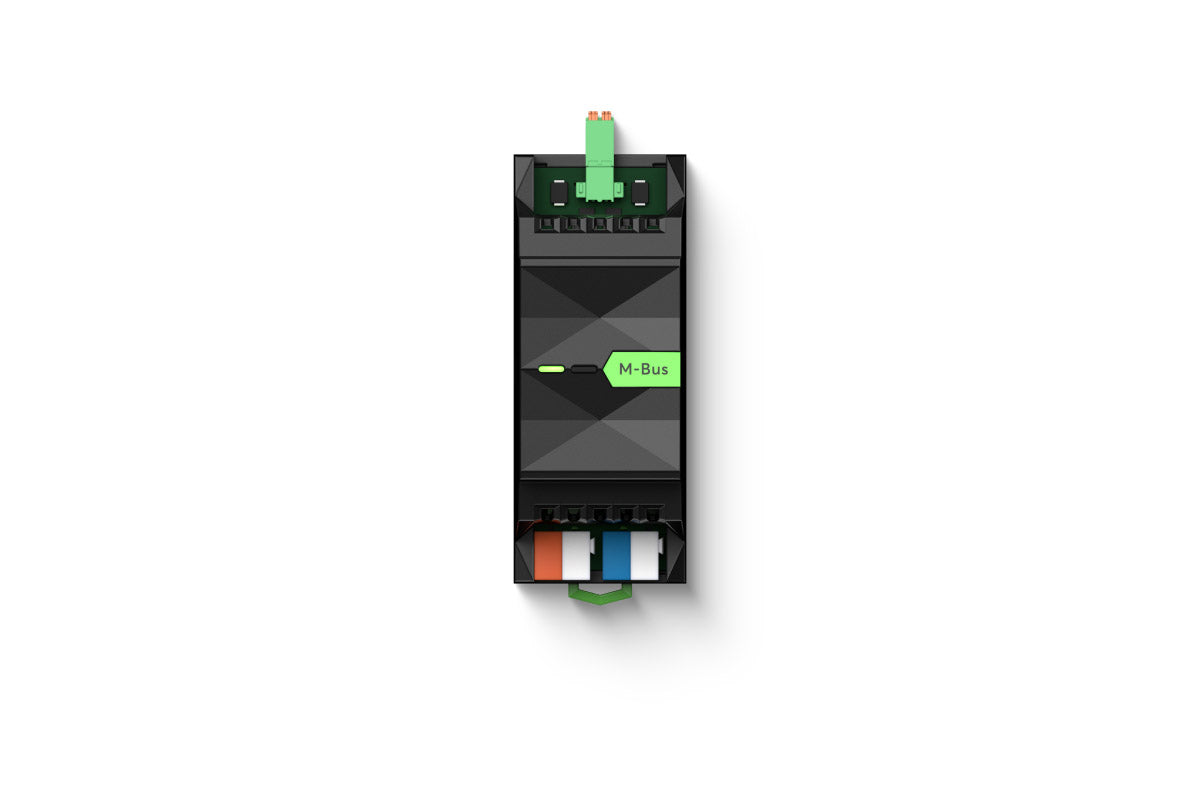

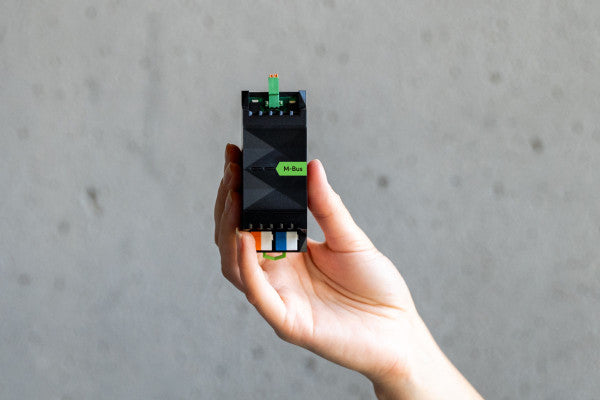

The Loxone M-Bus Extension is an M-Bus-Master for DIN rail mounting for reading up to 30 M-Bus devices such as gas, water or energy meters. The read values can be used for energy management, consumption data recording and much more.
Features:
- Up to 30 M-Bus devices
- Up to 100m bus length
- Supports different baud rates (300-9600 bd) on the same Bus
- Bus, line, star or tree topology
- Fully compliant with EN13757
- Supports query cycles from one second
Technical details:
Loxone Link:
Connection with Miniserver
Important note: Energy utility meters usually act as M-Bus-Master and are therefore not designed to be read by the Loxone M-Bus Extension, which also works as a Master (or another M-Bus gateway). In addition, the M-Bus Extension does not support encryption.
